CWV2-070WR (7" Windows CE Water-Resistant Industrial Panel PC)- Discontinuing Soon

CWV2 is scheduled for discontinuation. For new projects, please choose the CWR series instead.

Windows CE panel PCs provide a more affordable alternative to the Windows desktop panel PCs, yet still having enough performance and features to make professional user interfaces in a more compact size. Use Microsoft's Visual Studio 2008 Professional to develop software in C++ or C#/VB.NET with the .NET Compact Framework.

• Certifications :
• 7" Color TFT Touch Screen
• 800 x 480 resolution, 260K colors
• Waterproof Front Panel
• Windows Embedded CE 6.0
• S5PV210 (ARM Cortex-A8 1GHz)
• SDRAM 512MB / eMMC 4GB
• 2 RS-232C Serial Ports
• 1 RS-232C / RS-485 Serial Port
• 100Base-T Ethernet
• 1 USB Host Port
• 1 USB Device Port
• 1 × 0.8W Speaker Output
• 4-Wire Resistive Touchscreen
• Operating Temperature : -10 ~ 70℃
• Power : DC12V ~ DC24V, 6W (0.5A @ DC12V)

FAQ

Q: Why is the CWV2 being discontinued? What are the alternatives?

A: Unfortunately, the main CPU used in the CWV2 has been discontinued by the chip manufacturer. Because this is a core component, we can no longer continue production of the CWV2.

For existing customers, there are two practical alternatives:

CWA Series : This is a fully compatible replacement in terms of functionality. While performance is lower compared to the CWV2, it can be used as a drop-in alternative without major changes.
CWR Series : This option offers significantly higher performance and larger memory capacity. However, the CWR uses a newer operating system, so we strongly recommend verifying that your existing software runs correctly before migrating.

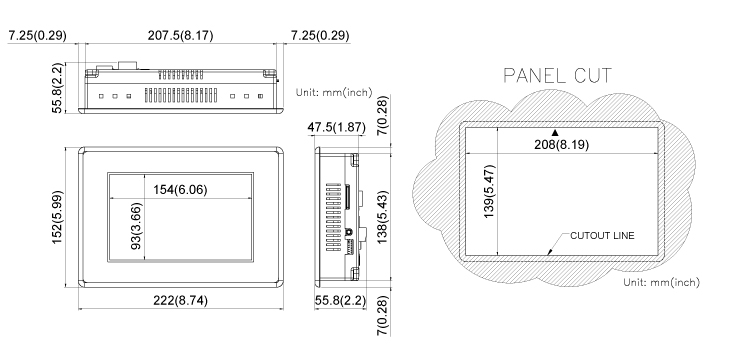

Dimension
