MSB624RA-DC-OEM

The MSB series is an industrial controller based on the CUBLOC platform. It supports both BASIC programming and Ladder Logic, allowing flexible program design combined with reliable PLC-style control. With its compact form factor, the MSB series can be directly installed and wired at industrial sites.

This product is a board-type MSB, intended for system integrators and developers who need a compact controller that can be embedded into custom equipment or control panels. It provides a rich set of digital I/O, analog inputs, communication interfaces, and motion-related functions such as PWM and high-speed counters.

• Industrial certifications: CE, KCC, FCC
• 16 digital inputs (24 VDC) and 8 built-in relay outputs (5 A)
• 4 analog inputs (0–10 V, 5-pin connector included)
• 4 analog inputs (0–20 mA, 5-pin connector included)
• 2 × RS-232 communication ports (4-pin connectors included)
• 1 × RS-485 communication port (5-pin connector included)
• 6 PWM output channels
• 2 high-speed counter inputs
• I²C interface for CLCD connection
• Powered by 24 VDC
• No real-time clock (RTC)

Note: A 3-pin download cable is required for program download and is not included.

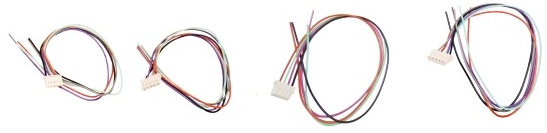

Included Accessories

• 4-pin cable × 2
• 5-pin cable × 2 (length: 25 cm)

FAQ

Q: This MSB looks different from the others. Why is that?

A: Yes, it was intentionally designed that way. We developed this model after receiving requests from certain customers who specifically wanted a PCB-style MSB. These customers prefer not to have a visible third-party brand inside their control panels. From their perspective, the final product should look like a custom controller they designed in-house, not an off-the-shelf module.

That’s why we kept the logo and product name extremely small and placed them discreetly in a corner. The goal was to let the board blend naturally into their system and appear as a fully custom solution.

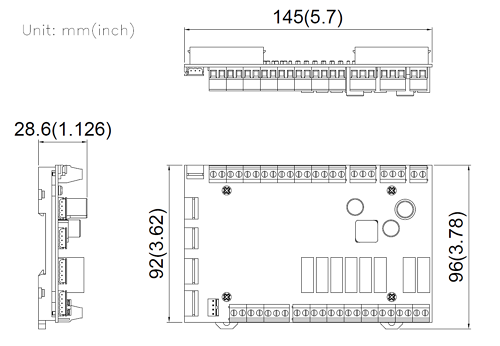

Dimension
