MSB630TA-DC

The MSB series can be applied directly to industrial sites and operated like a compact-sized PLC. With integrated power input, I/O interfaces, and communication ports, it enables quick installation and straightforward wiring in control panels and machines.

This model is designed for applications that require reliable digital input handling, transistor-based outputs, and flexible analog signal processing. Its balanced I/O configuration makes it suitable for factory automation, equipment control, and distributed control systems where space efficiency is important.

• 16 digital inputs (24 VDC) and 14 built-in NPN transistor outputs
• 4 analog inputs (0–10 V, 5-pin connector included)
• 4 analog inputs (0–20 mA, 5-pin connector included)
• 2 × RS-232 communication ports (4-pin connectors included)
• 1 × RS-485 communication port (5-pin connector included)
• Powered by 24 VDC
• No real-time clock (RTC)

Note: A 3-pin download cable is required for program download and is not included.

Included Accessories

• 4-pin cable × 2
• 5-pin cable × 3 (length: 25 cm)

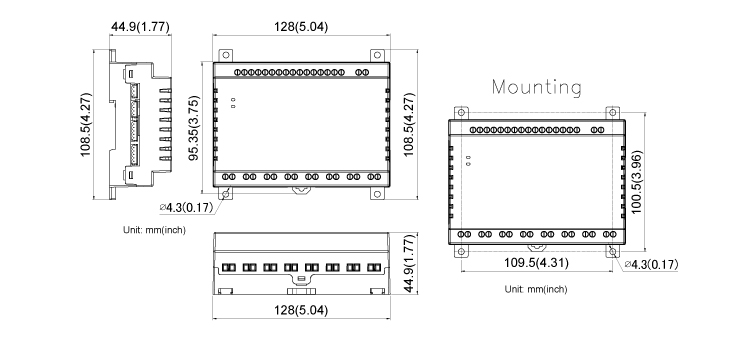

Dimension
