CPCV5-150WF (15" INTEL BayTrail Quad 1.83GHz Touch Panel PC)
- SKU:
- W04097
- Shipping:
- Calculated at Checkout
Description
Get Windows desktop functionality in a touch pane PC. COMFILE Technology's Windows 7/10 Touch Panel PCs feature desktop functionality, yet are designed to withstand the harsh environments typical of industrial applications.
- Screen Size : 15" (1024 x 768)
- Processor : Intel BayTrail-M N2930 / Quad Core 1.83GHz
- System Memory : 4G DDR3 RAM
- Touchscreen: Resistive
- HDD : 128GB m-SATA (FLASH Hard Disk)
- OS (option) : Windows Embedded Standard 7, Windows 7 Professional, or Windows 10 IoT Enterprise
- Etc : 1xEthernet, 4xUSB, 2xRS232, 1xRS232/422/485
- Water-resistant Front Panel (IP65)
CUPC CPCV5 series User's Manual
Restore CUPC to its Factory Default State / Windows Drivers
| CPCV5-070WR | CPCV5-102BR | CPCV5-101BR | CPCV5-104WF | CPCV5-150WF | |
| CPU | Intel Celeron N2930 | ||||
| Core Number | Quad | ||||
| Clock Speed | 1.83GHz | ||||
| CPU Type | Onboard | ||||
| Memory | SODIMM DDR3L 4GB | ||||
| HDD | m-SATA 128GB | ||||
| Graphics | Intel HD Graphics | ||||
| Video I/O | 1 x DVI Output Port | ||||
| Ethernet | 2 x Gigabit Ethernet (Realtek RTL8111G) | 1 x Gigabit Ethernet (Realtek RTL8111G) | |||
| Audio | Realtek High Definition Audio | ||||
| Audio I/O | 1 x Audio Line Output | ||||
| USB | 3 x USB2.0, 1 x USB3.0 | ||||
| Serial | 1 x RS232C/RS485/RS422, 1 x RS232C | 1 x RS232C/RS485/RS422, 2 x RS232C | |||
| Display | |||||
| Size | 7" | 10.2" | 10.1" | 10.4" | 15" |
| Resolution | 1024 x 600 | 800 x 480 | 1024 x 600 | 1024 x 768 | 1024 x 768 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 4:3 | 4:3 |
| Colors | 16.7M | 262K | 262K | 262K | 16.7M |
| Contrast | 800:1 | 300:1 | 600:1 | 500:1 | 800:1 |
| Response Time | 10mSec | 20mSec | 25mSec | 25mSec | 16mSec |
| Brightness | 400cd/m2 | 350cd/m2 | 250cd/m2 | 400cd/m2 | 420cd/m2 |
| Viewing Angle (Right/Left/Upper/Lower) |
80/80/80/80 | 65/65/45/65 | 70/70/70/50 | 70/70/60/60 | 80/80/80/80 |
| MTBF LCD&LED | 20,000hrs | 20,000hrs | 20,000hrs | 30,000hrs | 30,000hrs |
| Touch Screen Type | 4-Wire Resistive Touch | 5-Wire Resistive Touch | |||
| Power | |||||
| Input Power | +12VDC ~ +24VDC | ||||
| Power Consumption | 15W (1.2A@DC12V) | 17W (1.4A@DC12V) | 17W (1.4A@DC12V) | 18W (1.5A@DC12V) | 24W (2A@DC12V) |
| Mechanical | |||||

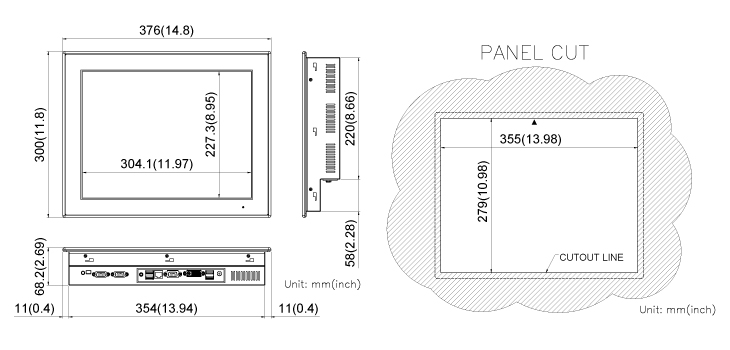

| Dimensions(WHD) unit:mm | 196x133x60 | 284x163x66 | 284x163x66 | 280x227x68 | 376x300x69 |
| Housing | ABS | ABS | ABS | Front:ABS,Rear:Steel | Front:ABS, Rear:Steel |
| Weight | 1.0Kg | 1.52Kg | 1.52Kg | 2.18Kg | 3.78Kg |
| Protection | Front: IP65 / Rear: IP20 | Front: IP54 / Rear: IP20 | Front: IP54 / Rear: IP20 | Front: IP65 / Rear: IP20 | Front: IP65 / Rear: IP20 |
| Environment | |||||
| Operation Temperature | 0oC~60oC | ||||
| Operation Humidity | 10~90%RH@60oC (non-condensing) |
10~90%RH@40oC (non-condensing) |
10~90%RH@60oC (non-condensing) |
10~85%RH@40oC (non-condensing) |
|
| Storage Temperature | -30oC~80oC | -20oC~70oC | |||
| Storage Humidity | 10~90%RH@60oC (non-condensing) | 10~90%RH@40oC (non-condensing) | 10~90%RH@60oC (non-condensing) | 10~90%RH@40oC (non-condensing) |
|
| Certification | |||||
| EMI Certification | KCC, CE, FCC Class A | ||||
| Software | |||||
| Operating System | Windows 10 Iot Enterprise / Windows Embedded Standard 7 / Windows 7 Professional | ||||
