The FADUINO is an Arduino-compatible industrial controller designed for reliable operation in control panels and industrial environments. It provides 24V digital inputs, transistor outputs, and analog input capability in a compact form, making it ideal for small automation tasks, sensor interfacing, and embedded control applications.

This model focuses on essential I/O functions while keeping wiring simple. Analog inputs, GPIO, and I2C functions are available on shared pins, allowing flexible use depending on the application. For programming and firmware upload, a USB-C port is provided (USB-C cable not included).

8 digital inputs (24 VDC)
4 NPN transistor outputs (0.25 A @ 24 VDC)
6 analog inputs (0–5 V, 10-bit, 5-pin connector included)
6 GPIO pins (shared with analog inputs)
1 I2C port (shared with analog inputs 4 and 5)
1 × RS-232 communication port (4-pin connector included)
2 interrupt inputs (24 VDC)
Power input: 12–24 VDC
Upload connector: USB-C port (USB-C cable not included)

Included Accessories

4-pin cable × 1 (length: 25 cm)

FAQ

Q: How is this different from a typical Arduino?

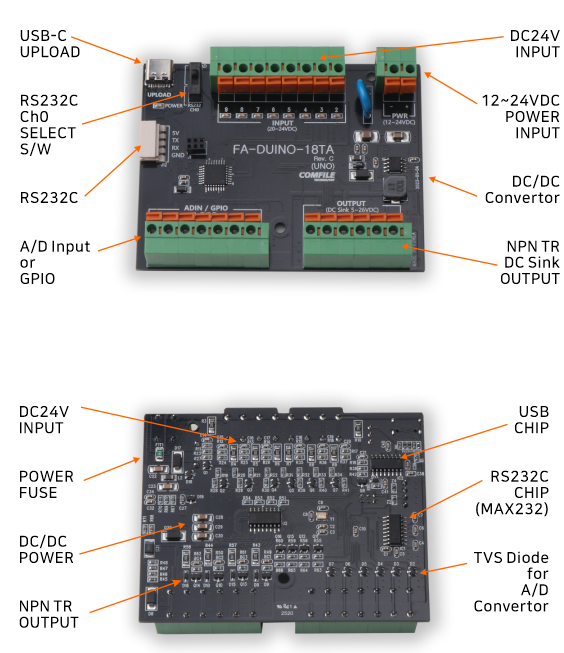

A: As you can see in the photo, the board is physically larger and contains significantly more components. A standard Arduino is designed to be low-cost and accessible, primarily targeting education, prototyping, and hobby projects. For those use cases, many of the components required in industrial environments simply aren’t necessary.

Our product is designed with a very different goal in mind. It is focused on industrial use, where long-term stability and resistance to electrical noise are critical. The additional components are there to improve noise immunity, power stability, and overall reliability.

That’s the key difference: Arduino is optimized for learning and experimentation, while our product is engineered for stable operation in real industrial environments.
