MSB764T

The MSB series is an industrial controller based on the CUBLOC platform. It supports both BASIC programming and Ladder Logic, allowing users to implement flexible program logic alongside reliable PLC-style control. With its compact PLC-type enclosure, the MSB series can be directly installed and wired in industrial environments without additional interface hardware.

This model is designed for applications that require a large number of digital I/O points and time-based control functions. The combination of high-density inputs and outputs, built-in real-time clock, and serial communication ports makes it suitable for automation systems, equipment controllers, and data-driven industrial processes.

• Industrial certifications: CE, KCC, FCC
• 32 digital inputs (24 VDC) and 32 NPN transistor outputs
• 2 high-speed counter inputs
• Built-in real-time clock with backup battery
• 2 × RS-232 communication ports
• Powered by 24 VDC

Note: A 3-pin download cable is required for program download and is not included.

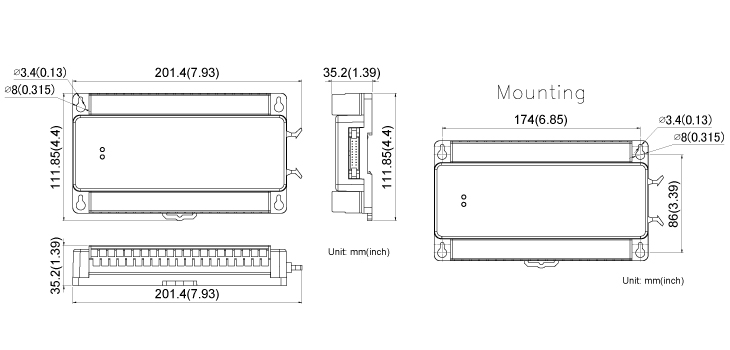

Dimension
