ComfileHMI Start KIT 1 (Human machine interface, HMI with PLC)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3

 Overview and User's manual

The ComfileHMI is a WYSIWYG development kit for HMI projects.

  • Supports Modbus RTU and Modbus ASCII
  • Water-resistant and open-frame models are available.
  • No branding on the hardware's front panel (logo-less).
  • Supports TrueType fonts and Unicode for creating multilingual user interfaces.
  • Supports PNG, JPG, and BMP image files.
  • Water resistant front panel models support audio output (e.g. .wav files)
  • microSD card support for additional memory (Included with purchase)

The ComfileHMI can be used to control the CUBLOC, MOACON, FA-DUINO, or just about any other Modbus-capable PLC or microcontroller.

   ComfileHMI User's Manual

This product is intended for first-time ComfileHMI users.

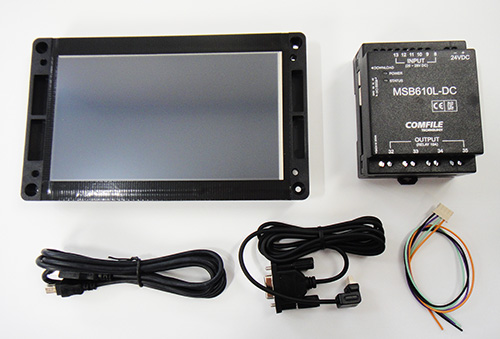

Includes the following:

  • 1 CHA-070PR
  • 1 MSB610L-DC
  • 1 3-PIN Download Cable (for MSB)
  • 1 HMI USB Cable

DC power adapter is not included



 Product Dimensions

COMFILE HMI CHA-070PR Dimensions
