 Overview and User's manual

Cubloc module in a compact enclosure

list.gifCertifications :
list.gif20 24VDC Inputs, 12 built-in 10A Relays
list.gif4 0~10V Analog Inputs (5-pin Molex 5264 connector included)
list.gif4 0~20mA Analog Inputs (5-pin Molex 5264 connector included)
list.gif2xRS232 Port (4-pin Molex 5264 connectors included)
list.gif1xRS485 Port (5-pin Molex 5264 connector included)
list.gif2 High-Speed Counters
list.gifPowered by 24VDC
list.gifNo Real-Time Clock

** 3-Pin Download Cable required **

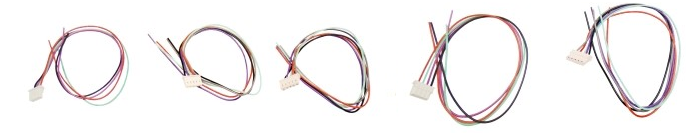

list.gif4-pin cable x 2
list.gif5-pin cable x 3 (length 25cm)


CUBLOC STUDIO: BASIC and Ladder Logic support
* MSB LOGIC: Only Ladder Logic support


  MSB632RA-DC User's Manual

   CUBLOC User's Manual

 Certification (CE, KCC, FCC, etc..)

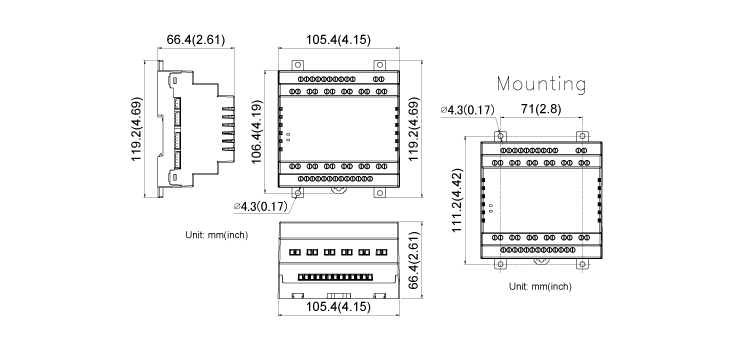

 Product Dimensions
