CB290 (CUBLOC Core module)

SKU:
U01003
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save
  • CB290 (CUBLOC Core module)
  • CB290 (CUBLOC Core module)
$69.00

Description

CUBLOC is an embedded controller that can use BASIC language and LADDER LOGIC at the same time. Core module is a product that can be installed on a PCB like an MCU.

The Cubase 64M makes an excellent companion I/O board for the CB290.

  • Package : 108 pin
  • IO ports : 91
  • Flash memory : 80K
  • Data memory : 28KB
  • 8 channel 10 bit A/D
  • 6 channel 16 bit PWM
  • 1 channel RS232 communication port

 CUBLOC User's Manual

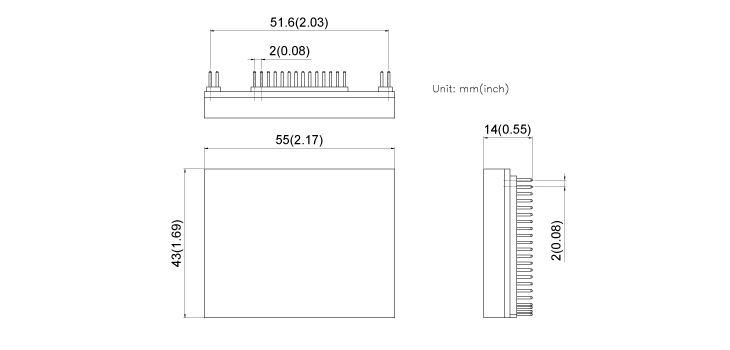

 CUBLOC CB290 PCB Dimension(CAD)

 CUBLOC CB290 PCB Dimension(PDF)

 CUBLOC CORE ORCAD files(DSN)

 CUBLOC CB290 CAD files

COMFILE CUBLOC Core Module
