Using Wonderware InduSoft Web Studio 8.0 with the CUWIN

Posted

We've recently updated our CUWIN Windows CE 6.0 Panel PCs with the necessary operating system components to support Wonderware InduSoft Web Studio 8.0 and CEView.

Web Studio 8.0 is a development environment and runtime toolkit for creating SCADA HMI applications, dashboards, and OEE interfaces. Applications can be developed on a Windows host PC and executed on our CUWIN Windows CE 6.0 Panel PCs with CEView.

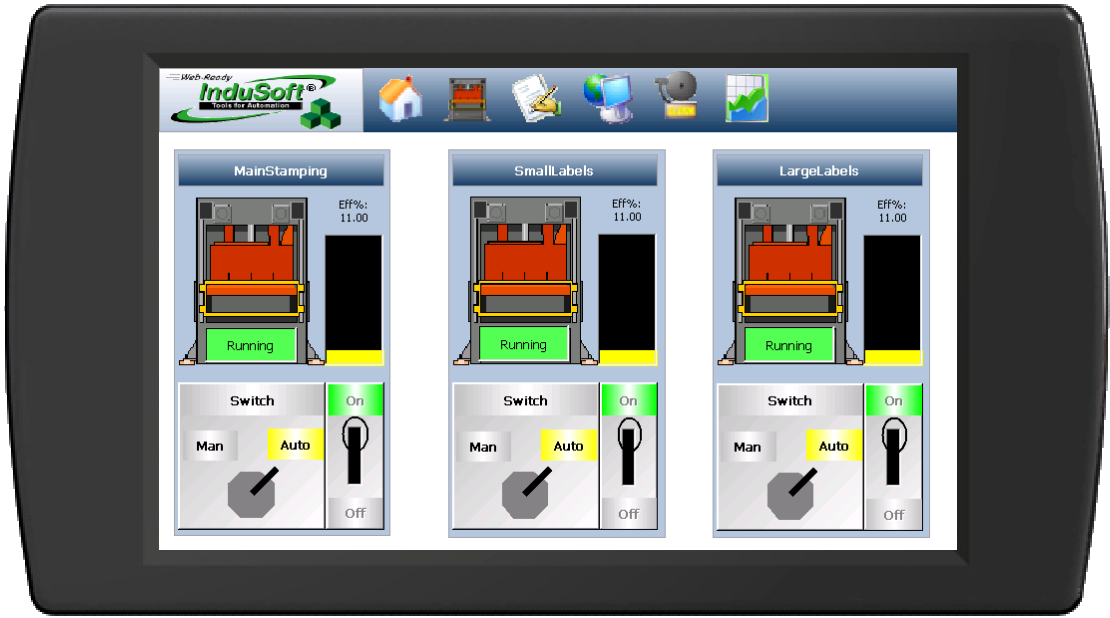

Screenshot of InduSoft's Machine Demo on the CUWIN 5200


Instructions

  • Install Web Studio 8.0 on a Windows host PC
  • Create a folder on the CUWIN at "\Flash Disk\InduSoft"

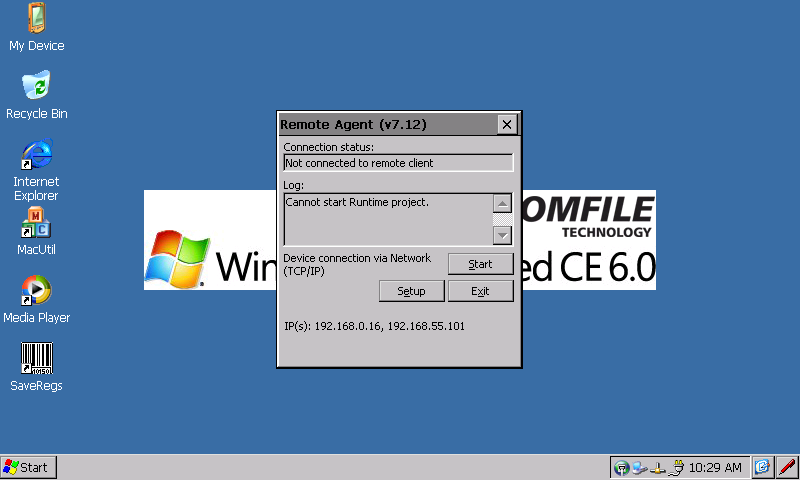

  • From the installation folder on the host PC (C:\Program Files (x86)\Wonderware InduSoft Web Studio v8.0), copy the file "Redist\WinCE 5.0\ArmV4I\Bin\CEServer.exe" to the "\Flash Disk\InduSoft" folder on the CUWIN, and execute it.  You will see a message saying "Cannot start Runtime project".  That is OK because we haven't installed the runtime yet.

  • From a command prompt on the CUWIN, run "ipconfig" to get the CUWIN's IP Address.
  • Open Web Studio 8.0 on the host PC and create a project.

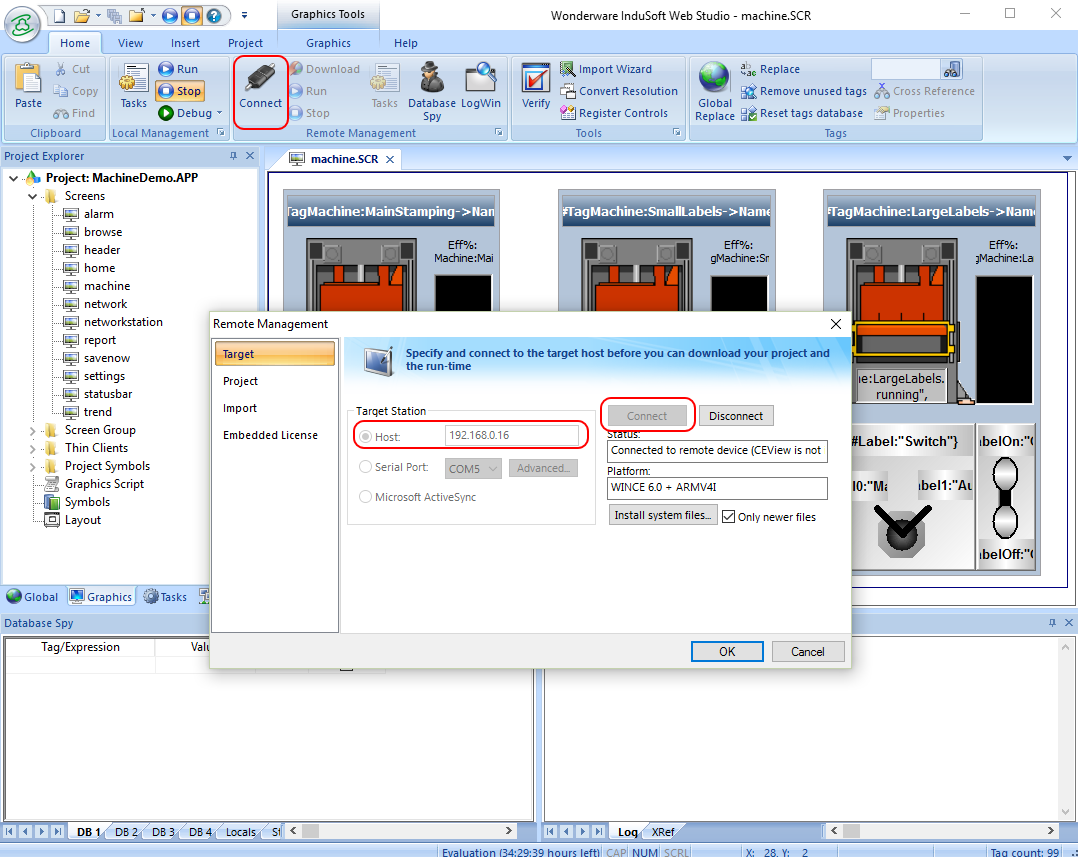

  • From the "Home" menu, click the "Connect" icon to open the "Remote Management" dialog.  Enter the CUWIN's IP Address in the "host" field, and click the "Connect" button.  After the connection is established, click the "Install system files..." button to install the runtime.

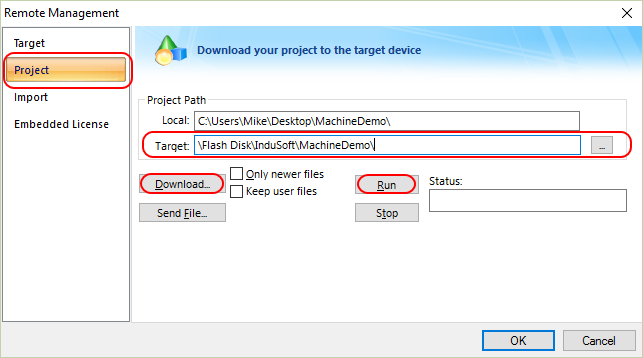

  • On the same "Remote Management" dialog, select the "Project" tab.
  • Select a folder to deploy your application to.  In this example, the path is "\Flash Disk\InduSoft\MachineDemo\".
  • Click the "Download" button to deploy the application to the CUWIN.
  • Click the "Run" button to run the application on the CUWIN.

If you would like to use InduSoft Web Studio with a CUWIN purchased prior to January 2016, please send an email to support@ComfileTech.com, and we will send you instructions to update your device's operating system with the required platform support.
